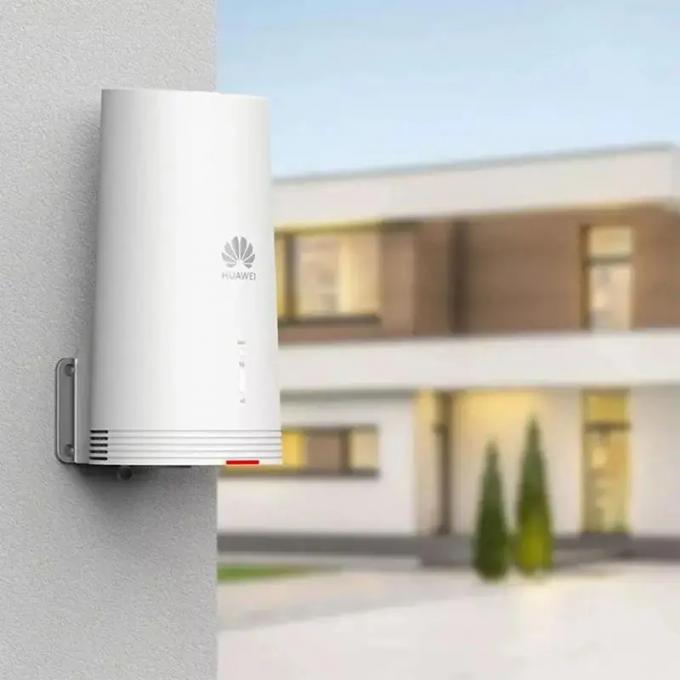

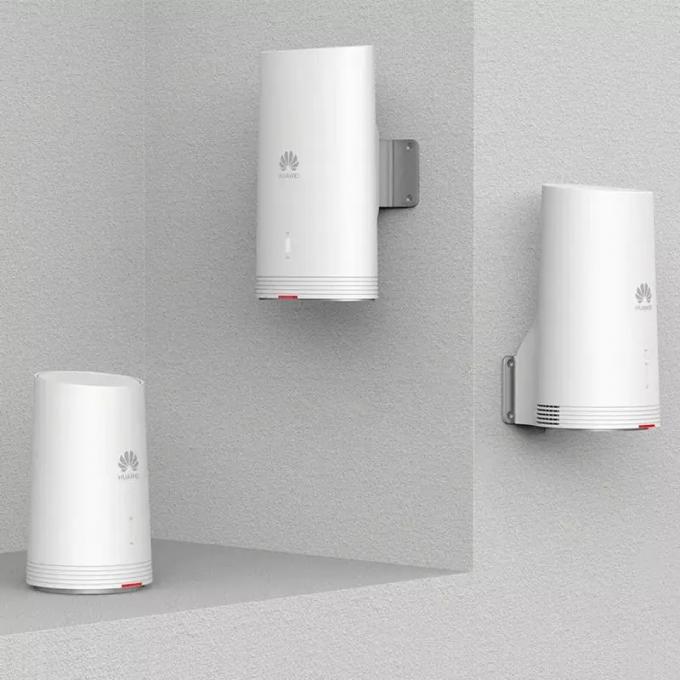

5G Outdoor CPE With Sim Card Slot Huawei N5368X 5G Modem Router for 5G CPE Max

5G CPE N5368X is new 5G all-scenario wireless broadband access equipment that provides network access for various types of household terminals which 5G signals into WLAN signals for sireless access and into Ethernet data for wired access for homes users and used as the points for mobility management and coverage to provide 5G access for NSA and SA Networks.

5G CPE N5368X Specifications:

* Product type:5G Outdoor CPE

* Operating Frequency bands:
- 5G NR: n78/n77/n41/n38
- LTE FDD: Band 1/Band 3/Band 7/Band 8/Band 20/Band 28
- LTE TDD: Band 38/Band 40/Band 41/Band 42/Band 43
- WLAN: 2.4 GHz/5 GHz
- Note: The supported operating frequency bands vary with areas. The n78 frequency band range is 3400–3800 MHz.

* Maximum Transmit Power:
- 5G NSA: 23 dBm@1T
- 5G SA: 26 dBm@2T
- LTE: 23 dBm
- ODU WLAN 5G: 14 dBm
- ODU WLAN 2.4G: 16 dBm
- Note: The supported WLAN maximum conducted transmit power varies with areas.

* Vendor Model: HW-190126D0D

* Output Voltage: 19 V ± 5%

* Output Power: 24 W

* High Data Rate and Larg Bandwidth :
- For NSA Network : A PS “ Packet Switched rate of up to 1.5 Gbit/s in Download and 110 Mibit /s in the Uplink
- For SA Network : A PS “ Packet Switched rate of up to 1.5 Gbit/s in Download and 220 Mibit /s in the Uplink
* High–Rate WLAN Access "Routing Mode":
- A Maximum of 32 device can be connected at 2.4 GHZ and 5GHZ Bands
- A Maximum of 300 Mbits /s with IEEE 802 .11n at 2.4 GHZ
- A Maximum of 867 Mbit/s with IEEE 802.11ac at 5GHZ
* Interfaces:
- 1 x NANO SIM card slot
- 1 x LAN port
- 1 x Power/LAN port

* Support IP address, MAC address, URL filtering
* What's included:
- 1 x N5368X CPE
- 1 x Outdoor-oriented mounting bracket(including bolts)
- 1 x Indoor Fixed-length Ethernet cable
- 1 x Indoor-oriented mounting bracket
- 1 x Waterproof PG connector
- 2 x Hose Clamp
- 1 x Quick Start
